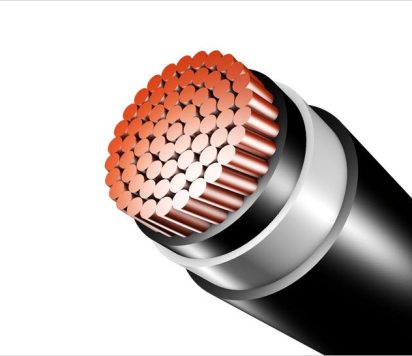

LV Lead Sheated

Low Voltage Lead Sheathed Cables are used mainly in the utilities and petrochemical industries owing to the lead sheathing’s resistance to sulfides, water, oil and any corrosive chemicals found in the ground water.

Low Voltage Lead Sheathed Cables have an extended lifespan, making them a reliable option for large-scale, infrastructure-related uses.

At ARABIAN EXPERTS Cables, our range of multi-core Low Voltage Lead Sheathed Cables come with XLPE or PVC insulation and the standard sheathing is Extruded Lead Alloy Type PB021K to BS EN 12548 (previously known as type “E”) with a nominal thickness as per IEC 60502-1. Special requests can be accommodated for the lead sheathing of varying thicknesses as well.

For LV Lead Sheathed Cables, we are able to supply fire retardant PVC, anti-termite / anti-rodent PVC, sunlight-resistant PVC, and oil resistant PVC. Special sheathing materials such as low smoke halogen free (LSHF), LLDPE, and MDPE are also available on request.

Get Quote Now!

LV Lead Sheated Cable Types

Un-Armoured Single Core Lead Sheathed Cable

COPPER CONDUCTORS

STANDARD : IEC 60502-1

600/1000 VOLTS

REQUEST A QUOTE

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Lead Sheath Thickness	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)	DC Resistance at 20°C	Standard Packing
mm²	mm	mm	mm	mm	mm	Kg/Km	Ohm/Km	M
1×10 rm	4.0	0.7	1.2	1.4	16	715	1.83	1000
1×16 rm	5.0	0.7	1.2	1.4	17	825	1.15	1000
1×25 rm	6.3	0.9	1.2	1.4	19	1025	0.727	1000
1×35 rm	7.4	0.9	1.2	1.4	20	1150	0.524	1000
1×50 rm	8.8	1.0	1.2	1.4	21	1350	0.387	1000
1×70 rm	10.6	1.1	1.2	1.5	23	1675	0.268	1000
1×95 rm	12.4	1.1	1.2	1.5	25	2025	0.193	1000
1×120 rm	14.0	1.2	1.2	1.6	27	2425	0.153	1000
1×150 rm	15.5	1.4	1.3	1.7	29	2800	0.124	1000
1×185 rm	17.4	1.6	1.4	1.7	31	3400	0.0991	500
1×240 rm	20.3	1.7	1.4	1.8	35	4250	0.0754	500
1×300 rm	22.7	1.8	1.5	1.9	37	5000	0.0601	500
1×400 rm	25.4	2.0	1.6	2.0	42	6250	0.047	500
1×500 rm	28.8	2.2	1.7	2.2	46	7725	0.0366	500
1×630 rm	30.4	2.4	1.8	2.3	48	9275	0.0283	500

	Colour Code (1):	Colour Code (2) :	Tolerance :
rm : Round Stranded	1 Core : Red or Black 2 Core : Red, Black 3 Core : Red, Yellow, Blue 4 Core : Red, Yellow, Blue, Black 5 Cores : Red, Yellow, Blue, Black, Green Above 5 cores : Black cores with White numerals.	1 Core : Brown or Blue 2 Core : Brown, Blue 3 Core : Brown, Black, Grey 4 Core : Blue, Brown, Black, Grey 5 Cores : Green/Yellow, Blue, Brown, Black, Grey Above 5 cores : Black cores with White numerals	Overall diameter : -2%, +8% Packing : ± 5%

Un-Armoured 2 & 3 Core Lead Sheathed Cable

Un-Armoured Two & Three Core Lead Sheathed Cable

COPPER CONDUCTORS

STANDARD : IEC 60502-1

600/1000 VOLTS

REQUEST A QUOTE

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Lead Sheath Thickness	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)	DC Resistance at 20°C	Standard Packing
mm²	mm	mm	mm	mm	mm	Kg/Km	Ohm/Km	M
2×2.5 rm	2.0	0.7	1.2	1.8	18	825	7.41	1000
2×4 rm	2.6	0.7	1.2	1.8	19	925	4.61	1000
2×6 rm	3.1	0.7	1.2	1.8	20	1025	3.08	1000
2×10 rm	4.0	0.7	1.2	1.8	22	1225	1.83	1000
2×16 rm	5.0	0.7	1.2	1.8	24	1500	1.15	1000
2×25 rm	6.3	0.9	1.2	1.8	27	1925	0.727	1000
2×35 rm	7.4	0.9	1.2	1.8	29	2300	0.524	1000
2×50 rm	8.8	1.0	1.3	1.8	33	2875	0.387	500
3×1.5 rm	1.6	0.7	1.2	1.8	17	790	12.1	1000
3×2.5 rm	2.0	0.7	1.2	1.8	18	875	7.41	1000
3×4 rm	2.6	0.7	1.2	1.8	19	1000	4.61	1000
3×6 rm	3.1	0.7	1.2	1.8	21	1125	3.08	1000
3×10 rm	4.0	0.7	1.2	1.8	23	1375	1.83	1000
3×16 rm	5.0	0.7	1.2	1.8	25	1700	1.15	1000
3×25 rm	6.3	0.9	1.2	1.8	28	2225	0.727	1000
3×35 rm	7.4	0.9	1.3	1.8	31	2650	0.524	500

	Colour Code (1):	Colour Code (2) :	Tolerance :
rm : Round Stranded	1 Core : Red or Black 2 Core : Red, Black 3 Core : Red, Yellow, Blue 4 Core : Red, Yellow, Blue, Black 5 Cores : Red, Yellow, Blue, Black, Green Above 5 cores : Black cores with White numerals.	1 Core : Brown or Blue 2 Core : Brown, Blue 3 Core : Brown, Black, Grey 4 Core : Blue, Brown, Black, Grey 5 Cores : Green/Yellow, Blue, Brown, Black, Grey Above 5 cores : Black cores with White numerals	Overall diameter : -2%, +8% Packing : ± 5%

Un-Armoured 3-Core Lead Sheathed Cable

Un-Armoured Three Core Lead Sheathed Cable

COPPER CONDUCTORS

STANDARD : IEC 60502-1

600/1000 VOLTS

REQUEST A QUOTE

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Lead Sheath Thickness	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)	DC Resistance at 20°C	Standard Packing
mm²	mm	mm	mm	mm	mm	Kg/Km	Ohm/Km	M
ROUND STRANDED CONDUCTORS
3×50 rm	8.8	1.0	1.4	1.9	35	3350	0.387	500
3×70 rm	10.6	1.1	1.5	2.0	40	4425	0.268	500
3×95 rm	12.4	1.1	1.6	2.1	44	5625	0.193	500
3×120 rm	14.0	1.2	1.7	2.3	49	6850	0.153	500
3×150 rm	15.5	1.4	1.8	2.4	54	8250	0.124	250
3×185 rm	17.4	1.6	1.9	2.6	59	10025	0.0991	250
3×240 rm	20.3	1.7	2.1	2.8	67	12900	0.0754	250
3×300 rm	22.7	1.8	2.2	2.9	73	15550	0.0601	250
SECTORAL STRANDED CONDUCTORS
3×50 sm	–	1.0	1.3	1.9	32	3000	0.387	500
3×70 sm	–	1.1	1.4	2.0	36	4000	0.268	500
3×95 sm	–	1.1	1.5	2.1	40	5075	0.193	500
3×120 sm	–	1.2	1.6	2.3	44	6175	0.153	500
3×150 sm	–	1.4	1.7	2.4	48	7525	0.124	500
3×185 sm	–	1.6	1.8	2.6	53	9125	0.0991	250
3×240 sm	–	1.7	2.0	2.8	59	11650	0.0754	250
3×300 sm	–	1.8	2.1	2.9	64	14025	0.0601	250

Colour Code (1):

Colour Code (2) :

Tolerance :

rm : Round Stranded

sm : Sectoral Stranded

1 Core : Red or Black
2 Core : Red, Black
3 Core : Red, Yellow, Blue
4 Core : Red, Yellow, Blue, Black
5 Cores : Red, Yellow, Blue, Black, Green
Above 5 cores : Black cores with White numerals.

1 Core : Brown or Blue
2 Core : Brown, Blue
3 Core : Brown, Black, Grey
4 Core : Blue, Brown, Black, Grey
5 Cores : Green/Yellow, Blue, Brown, Black, Grey
Above 5 cores : Black cores with White numerals

Overall diameter : -2%, +8%
Packing : ± 5%

Armoured 2 & 3 Core Lead Sheathed Cable

Armoured Two & Three Core Lead Sheathed Cable

COPPER CONDUCTORS

STANDARD : IEC 60502-1

600/1000 VOLTS

REQUEST A QUOTE

Nominal Cross Section	Nominal Diameter of Conductor	Nominal Insulation Thickness	Nominal Lead Sheath Thickness	Nominal dia. of Steel wire armour	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)	DC Resistance at 20°C	Standard Packing
mm²	mm	mm	mm	mm	mm	Kg/Km	Kg/Km	Ohm/Km	M
2×2.5 rm	2.0	0.7	1.2	1.3	1.8	22	1325	7.41	1000
2×4 rm	2.6	0.7	1.2	1.3	1.8	23	1450	4.61	1000
2×6 rm	3.1	0.7	1.2	1.3	1.8	24	1600	3.08	1000
2×10 rm	4.0	0.7	1.2	1.6	1.8	27	2025	1.83	1000
2×16 rm	5.0	0.7	1.2	1.6	1.8	29	2350	1.15	1000
2×25 rm	6.3	0.9	1.2	1.6	1.8	32	2900	0.727	500
2×35 rm	7.4	0.9	1.2	1.6	1.9	35	3350	0.524	500
2×50 rm	8.8	1.0	1.3	2.0	2.0	39	4375	0.387	500
3×1.5 rm	1.6	0.7	1.2	1.3	1.8	22	1275	12.1	1000
3×2.5 rm	2.0	0.7	1.2	1.3	1.8	23	1400	7.41	1000
3×4 rm	2.6	0.7	1.2	1.3	1.8	24	1550	4.61	1000
3×6 rm	3.1	0.7	1.2	1.3	1.8	25	1725	3.08	1000
3×10 rm	4.0	0.7	1.2	1.6	1.8	28	2175	1.83	1000
3×16 rm	5.0	0.7	1.2	1.6	1.8	30	2575	1.15	1000
3×25 rm	6.3	0.9	1.2	1.6	1.9	34	3250	0.727	500
3×35 rm	7.4	0.9	1.3	1.6	1.9	36	3750	0.524	500

	Colour Code (1):	Colour Code (2) :	Tolerance :
rm : Round Stranded	1 Core : Red or Black 2 Core : Red, Black 3 Core : Red, Yellow, Blue 4 Core : Red, Yellow, Blue, Black 5 Cores : Red, Yellow, Blue, Black, Green Above 5 cores : Black cores with White numerals.	1 Core : Brown or Blue 2 Core : Brown, Blue 3 Core : Brown, Black, Grey 4 Core : Blue, Brown, Black, Grey 5 Cores : Green/Yellow, Blue, Brown, Black, Grey Above 5 cores : Black cores with White numerals	Overall diameter : -2%, +8% Packing : ± 5%

Armoured 3-Core Lead Sheathed Cable

Un-Armoured Two & Three Core Lead Sheathed Cable

COPPER CONDUCTORS

STANDARD : IEC 60502-1

600/1000 VOLTS

REQUEST A QUOTE

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Lead Sheath Thickness	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)	DC Resistance at 20°C	Standard Packing
mm²	mm	mm	mm	mm	mm	Kg/Km	Ohm/Km	M
2×2.5 rm	2.0	0.7	1.2	1.8	18	825	7.41	1000
2×4 rm	2.6	0.7	1.2	1.8	19	925	4.61	1000
2×6 rm	3.1	0.7	1.2	1.8	20	1025	3.08	1000
2×10 rm	4.0	0.7	1.2	1.8	22	1225	1.83	1000
2×16 rm	5.0	0.7	1.2	1.8	24	1500	1.15	1000
2×25 rm	6.3	0.9	1.2	1.8	27	1925	0.727	1000
2×35 rm	7.4	0.9	1.2	1.8	29	2300	0.524	1000
2×50 rm	8.8	1.0	1.3	1.8	33	2875	0.387	500
3×1.5 rm	1.6	0.7	1.2	1.8	17	790	12.1	1000
3×2.5 rm	2.0	0.7	1.2	1.8	18	875	7.41	1000
3×4 rm	2.6	0.7	1.2	1.8	19	1000	4.61	1000
3×6 rm	3.1	0.7	1.2	1.8	21	1125	3.08	1000
3×10 rm	4.0	0.7	1.2	1.8	23	1375	1.83	1000
3×16 rm	5.0	0.7	1.2	1.8	25	1700	1.15	1000
3×25 rm	6.3	0.9	1.2	1.8	28	2225	0.727	1000
3×35 rm	7.4	0.9	1.3	1.8	31	2650	0.524	500

Armoured Three Core Lead Sheathed Cable

COPPER CONDUCTORS

STANDARD : IEC 60502-1
600/1000 VOLTS

REQUEST A QUOTE

Nominal Cross Section	Nominal Diameter of Conductor	Nominal Insulation Thickness	Nominal Lead Sheath Thickness	Nominal dia. of Steel wire armour	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)	DC Resistance at 20°C	Standard Packing
mm²	mm	mm	mm	mm	mm	Kg/Km	Kg/Km	Ohm/Km	M
ROUND STRANDED CONDUCTORS
3×50 rm	8.8	1.0	1.4	2.0	2.1	41	4900	0.387	500
3×70 rm	10.6	1.1	1.5	2.0	2.2	47	6225	0.268	500
3×95 rm	12.4	1.1	1.6	2.5	2.4	51	7650	0.193	250
3×120 rm	14.0	1.2	1.7	2.5	2.5	57	9550	0.153	250
3×150 rm	15.5	1.4	1.8	2.5	2.7	62	11300	0.124	250
3×185 rm	17.4	1.6	1.9	2.5	2.8	68	13375	0.991	250
3×240 rm	20.3	1.7	2.1	2.5	3.1	76	16700	0.0754	250
3×300 rm	22.7	1.8	2.2	2.5	3.2	82	19725	0.0601	250
SECTORAL STRANDED CONDUCTORS
3×50 sm	–	1.0	1.3	2.0	2.1	39	4450	0.387	500
3×70 sm	–	1.1	1.4	2.0	2.2	43	5650	0.268	500
3×95 sm	–	1.1	1.5	2.0	2.4	47	6900	0.193	250
3×120 sm	–	1.2	1.6	2.5	2.5	52	8575	0.153	250
3×150 sm	–	1.4	1.7	2.5	2.7	57	10275	0.124	250
3×185 sm	–	1.6	1.8	2.5	2.8	61	12100	0.0991	250
3×240 sm	–	1.7	2.0	2.5	3.0	67	14975	0.0754	250
3×300 sm	–	1.8	2.1	2.5	3.2	73	17700	0.0601	250

	Colour Code (1):	Colour Code (2) :	Tolerance :
rm : Round Stranded sm : Sectoral Stranded	1 Core : Red or Black 2 Core : Red, Black 3 Core : Red, Yellow, Blue 4 Core : Red, Yellow, Blue, Black 5 Cores : Red, Yellow, Blue, Black, Green Above 5 cores : Black cores with White numerals.	1 Core : Brown or Blue 2 Core : Brown, Blue 3 Core : Brown, Black, Grey 4 Core : Blue, Brown, Black, Grey 5 Cores : Green/Yellow, Blue, Brown, Black, Grey Above 5 cores : Black cores with White numerals	Overall diameter : -2%, +8% Packing : ± 5%

Armoured 3 and Half-Core Lead Sheathed Cable

Armoured Three and Half Core Lead Sheathed Cable

COPPER CONDUCTORS

STANDARD : IEC 60502-1

600/1000 VOLTS

REQUEST A QUOTE

Nominal Cross Section	Nominal Insulation Thickness		Nominal Lead Sheath Thickness	Nominal dia. of Steel Wire armour	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)	DC Resistance at 20°C		Standard Packing
	Ph	Ne						Ph	Ne
mm²	mm	mm	mm	mm	mm	mm	Kg/Km	Ohm/Km		M
3×10 rm+6 rm	0.7	0.7	1.2	1.8	1.6	29	2325	1.83	3.08	500
3×16 rm+10 rm	0.7	0.7	1.2	1.8	1.6	31	2775	1.15	1.83	500
3×25 rm+16 rm	0.9	0.7	1.2	1.9	1.6	35	3475	0.727	1.15	500
3×35 sm+16 rm	0.9	0.7	1.2	2.0	1.6	35	3650	0.524	1.15	500
3×50 sm+25 rm	1.0	0.9	1.3	2.1	2.0	40	4825	0.387	0.727	500
3×70 sm+35 rm	1.1	0.9	1.4	2.3	2.0	45	6175	0.268	0.524	500
3×95 sm+50 rm	1.1	1.0	1.5	2.4	2.5	50	8025	0.193	0.387	250
3×120 sm+70 rm	1.2	1.1	1.6	2.6	2.5	54	9575	0.153	0.268	250
3×150 sm+70 rm	1.4	1.1	1.7	2.7	2.5	59	11175	0.124	0.268	250
3×185 sm+95 rm	1.6	1.1	1.9	2.9	2.5	64	13575	0.0991	0.193	250
3×240 sm+120 rm	1.7	1.2	2.0	3.1	2.5	70	16525	0.0754	0.153	250
3×300 sm+150 rm	1.8	1.4	2.2	3.4	3.15	78	20800	0.0601	0.124	250

	Colour Code (1):	Colour Code (2) :	Tolerance :
rm : Round Stranded sm : Sectoral Stranded	1 Core : Red or Black 2 Core : Red, Black 3 Core : Red, Yellow, Blue 4 Core : Red, Yellow, Blue, Black 5 Cores : Red, Yellow, Blue, Black, Green Above 5 cores : Black cores with White numerals.	1 Core : Brown or Blue 2 Core : Brown, Blue 3 Core : Brown, Black, Grey 4 Core : Blue, Brown, Black, Grey 5 Cores : Green/Yellow, Blue, Brown, Black, Grey Above 5 cores : Black cores with White numerals	Overall diameter : -2%, +8% Packing : ± 5%

Un-Armoured 3 and Half-Core Lead Sheathed Cable

COPPER CONDUCTORS

STANDARD : IEC 60502-1

600/1000 VOLTS

REQUEST A QUOTE

Nominal Cross Section	Nominal Insulation Thickness		Nominal Lead Sheath Thickness	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)	DC Resistance at 20°C		Standard Packing
	Ph	Ne					Ph	Ne
mm²	mm	mm	mm	mm	mm	Kg/Km	Ohm/Km		M
3×10 rm+6 rm	0.7	0.7	1.2	1.8	23	1475	1.83	3.08	1000
3×16 rm+10 rm	0.7	0.7	1.2	1.8	26	1850	1.15	1.83	1000
3×25 rm+16 rm	0.9	0.7	1.2	1.8	29	2425	0.727	1.15	1000
3×35 sm+16 rm	0.9	0.7	1.2	1.8	30	2575	0.524	1.15	1000
3×50 sm+25 rm	1.0	0.9	1.3	1.9	33	3325	0.387	0.727	500
3×70 sm+35 rm	1.1	0.9	1.4	2.0	38	4450	0.268	0.524	500
3×95 sm+50 rm	1.1	1.0	1.5	2.2	42	5675	0.193	0.387	500
3×120 sm+70 rm	1.2	1.1	1.6	2.3	46	6975	0.153	0.268	500
3×150 sm+70 rm	1.4	1.1	1.7	2.4	50	8325	0.124	0.268	250
3×185 sm+95 rm	1.6	1.1	1.9	2.6	56	10400	0.0991	0.193	250
3×240 sm+120 rm	1.7	1.2	2.0	2.8	62	13025	0.0754	0.153	250
3×300 sm+150 rm	1.8	1.4	2.2	3.0	67	15950	0.0601	0.124	250

Colour Code (1):

Colour Code (2) :

Tolerance :

rm : Round Stranded

sm : Sectoral Stranded

1 Core : Red or Black
2 Core : Red, Black
3 Core : Red, Yellow, Blue
4 Core : Red, Yellow, Blue, Black
5 Cores : Red, Yellow, Blue, Black, Green
Above 5 cores : Black cores with White numerals.

Overall diameter : -2%, +8%
Packing : ± 5%

Un-Armoured 4-Core Lead Sheathed Cable

Un-Armoured Four Core Lead Sheathed Cable

COPPER CONDUCTORS

STANDARD : IEC 60502-1

600/1000 VOLTS

REQUEST A QUOTE

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Lead Sheath Thickness	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)	DC Resistance at 20°C	Standard Packing
mm²	mm	mm	mm	mm	mm	Kg/Km	Ohm/Km	M
4×1.5 rm	1.6	0.7	1.2	1.8	18	850	12.1	1000
4×2.5 rm	2.0	0.7	1.2	1.8	19	950	7.41	1000
4×4 rm	2.6	0.7	1.2	1.8	20	1100	4.61	1000
4×6 rm	3.1	0.7	1.2	1.8	22	1250	3.08	1000
4×10 rm	4.0	0.7	1.2	1.8	24	1550	1.83	1000
4×16 rm	5.0	0.7	1.2	1.8	26	1950	1.15	1000
4×25 rm	6.3	0.9	1.3	1.8	31	2700	0.727	500
4×35 sm	–	0.9	1.2	1.8	31	2800	0.524	500
4×50 sm	–	1.0	1.4	2.0	35	3700	0.387	500
4×70 sm	–	1.1	1.5	2.1	40	4950	0.268	500
4×95 sm	–	1.1	1.6	2.3	44	6350	0.193	500
4×120 sm	–	1.2	1.7	2.4	48	7750	0.153	500
4×150 sm	–	1.4	1.8	2.6	53	9425	0.124	250
4×185 sm	–	1.6	2.0	2.7	58	11575	0.0991	250
4×240 sm	–	1.7	2.2	3.0	65	14800	0.751	250
4×300 sm	–	1.8	2.3	3.2	71	17900	0.0601	250

Colour Code (1):

Colour Code (2) :

Tolerance :

rm : Round Stranded

sm : Sectoral Stranded

1 Core : Red or Black
2 Core : Red, Black
3 Core : Red, Yellow, Blue
4 Core : Red, Yellow, Blue, Black
5 Cores : Red, Yellow, Blue, Black, Green
Above 5 cores : Black cores with White numerals.

Overall diameter : -2%, +8%
Packing : ± 5%

Armoured Single Core Lead Shethed Cable

Armoured Single Core Lead Sheathed Cable

COPPER CONDUCTORS

STANDARD : IEC 60502-1

600/1000 VOLTS

REQUEST A QUOTE

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Lead Sheath Thickness	Nominal dia. of Aluminium wire armour	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)	DC Resistance at 20°C	Standard Packing
mm²	mm	mm	mm	mm	mm	Kg/Km	Kg/Km	Ohm/Km	M
1×35 rm	7.4	0.9	1.2	1.3	1.8	24	1450	0.524	1000
1×50 rm	8.8	1.0	1.2	1.3	1.8	26	1750	0.387	1000
1×70 rm	10.6	1.1	1.2	1.6	1.8	28	2075	0.268	500
1×95 rm	12.4	1.1	1.2	1.6	1.8	30	2450	0.193	500
1×120 rm	14.0	1.2	1.2	1.6	1.8	32	2900	0.153	500
1×150 rm	15.5	1.4	1.3	1.6	1.9	34	3300	0.124	500
1×185 rm	17.4	1.6	1.4	1.6	2.0	37	3950	0.0991	500
1×240 rm	20.3	1.7	1.4	2.0	2.1	41	5000	0.0754	500
1×300 rm	22.7	1.8	1.5	2.0	2.1	44	5825	0.0601	500
1×400 rm	25.4	2.0	1.6	2.0	2.3	48	7150	0.0470	500
1×500 rm	28.8	2.2	1.7	2.5	2.4	54	8900	0.0366	500
1×630 rm	30.4	2.4	1.8	2.5	2.6	57	10600	0.0283	500

	Colour Code (1):	Colour Code (2) :	Tolerance :
rm : Round Stranded	1 Core : Red or Black 2 Core : Red, Black 3 Core : Red, Yellow, Blue 4 Core : Red, Yellow, Blue, Black 5 Cores : Red, Yellow, Blue, Black, Green Above 5 cores : Black cores with White numerals.	1 Core : Brown or Blue 2 Core : Brown, Blue 3 Core : Brown, Black, Grey 4 Core : Blue, Brown, Black, Grey 5 Cores : Green/Yellow, Blue, Brown, Black, Grey Above 5 cores : Black cores with White numerals	Overall diameter : -2%, +8% Packing : ± 5%
